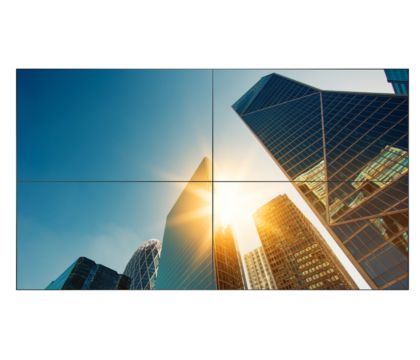

Signage Solutions Video Wall Display

55BDL3207X/00

Impressive videowall

Take presentations and corporate branding to the next level. The Philips X-Line Videowall display brings your content to life to ensure absolute audience engagement in every setting with Pure Colour Pro.

Signage Solutions Video Wall Display

Impressive videowall

Inspire your team and guests

  • 55"
  • Direct LED Backlight
  • Full HD
  • 700cd/m²
Operate, monitor and maintain with CMND & Control

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures content is always playing

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

OPS slot allows for PC embedding without cabling

OPS slot allows for PC embedding without cabling

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Add Android processing power with an optional CRD50 module

Embed an Android System-on-Chip (SoC) in your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).

Tiling mode. Create tiled 4K videowalls of any size

Connect two or more Philips professional displays to create a tiled videowall-without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported, and if you're showing that content on four screens you get the best possible dot-by-dot resolution.

Ultra-narrow bezels. For distraction-free images

Boost image quality with Pure Colour Pro. Delivering higher luminance through custom colour temperature settings and advanced gamma calibration, content looks crisper and more radiant for stunning realism with a visual pop.

Technical Specifications

  • Picture/Display

    Diagonal screen size (metric)
    138.7  cm
    Diagonal screen size (inch)
    54.6  inch
    Aspect ratio
    16:9
    Panel resolution
    1920x1080p
    Pixel pitch
    0.63 x 0.63 mm
    Optimum resolution
    1920 x 1080 @ 60 Hz
    Brightness
    700  cd/m²
    Display colors
    1.07 B
    Contrast ratio (typical)
    1100:1
    Dynamic contrast ratio
    500,000:1
    Response time (typical)
    8  ms
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Haze
    28 %
  • Connectivity

    Audio output
    3.5 mm Mini Jack (x1)
    Video input
    • DVI-D (x1)
    • HDMI 2.0 (x2)
    • VGA (Analog D-Sub) (x1)
    • Display Port1.3 (x1)
    Audio input
    3.5 mm mini jack (x1)
    Other connections
    • OPS
    • USB 2.0 (x1)
    • Thermal sensor
    Video output
    DisplayPort 1.3 (x1)
    External control
    • IR (in) 3.5 mm jack
    • LAN RJ45 (x2)
    • Signal loopthrough RJ45(x2)
  • Convenience

    Placement
    • Landscape (24/7)
    • Portrait (24/7)
    Tiled Matrix
    Up to 15 x 15
    Screen saving functions
    Pixel Shift, Low Bright
    Signal loop through
    • DisplayPort
    • RJ45
    Ease of installation
    • Carrying Handles
    • Smart Insert
    Energy saving functions
    Smart Power
    Network controllable
    LAN (RJ45)
  • Sound

    Built-in speakers
    2 x 10W (RMS)
  • Power

    Consumption (On mode)
    115 W
    Consumption (Typical)
    170  W
    Consumption (Max)
    340 W
    Standby power consumption
    <0.50 W
    Energy Label Class
    G
  • Supported Display Resolution

    Computer formats
    • 1024 x 768, 60, 75Hz
    • 1280 x 1024, 60Hz
    • 1280 x 768, 60Hz
    • 1280 x 800, 60Hz
    • 1280 x 960, 60Hz
    • 1360 x 768, 60Hz
    • 1366 x 768, 60Hz
    • 1600 x 1200, 60Hz
    • 1920 x 1080, 60Hz
    • 640 x 480, 60, 72, 75Hz
    • 720 x 400, 70Hz
    • 800 x 600, 60, 75Hz
    Video formats
    • 720p, 50, 60Hz
    • 1080i, 25, 30Hz
    • 1080p, 50, 60Hz
    • 2160P 50, 60Hz ((HDMI/OPS/DP)
  • Dimensions

    Smart Insert mount
    100mm x 100mm, 6xM4xL6
    Set Width
    1213.4  mm
    Product weight
    26.17  kg
    Set Height
    684.2  mm
    Set Depth
    98.2 mm(D@WallMount)/99.35 mm(D@Handle)  mm
    Set Width (inch)
    47.77  inch
    Set Height (inch)
    26.94  inch
    Wall Mount
    400mm x 400mm, M6
    Set Depth (inch)
    3.87 (D@WallMount)/3.91 (D@Handle)  inch
    Bezel width
    3.5mm
  • Operating conditions

    Altitude
    0 ~ 3000 m
    Temperature range (operation)
    0 ~ 40  °C
    MTBF
    50,000  hour(s)
    Temperature range (storage)
    -20 ~ 60  °C
    Humidity range (operation)[RH]
    20 - 80% (without condensation)
    Humidity range (storage) [RH]
    5 - 95% (without condensation)
  • Accessories

    Included Accessories
    • Gap pad x3
    • IR sensor cable (1.8 m) (x1)
    • Quick start guide (x1)
    • Remote control & AAA batteries
    • RJ45 / RS232 converter
    • Wire Clamper (x3)
    • Power cord
    • DP cable (x1)
    • RJ45 cable (x1)
    • Edge alignment pin (x2)
    • Kit-1 (x1)
    • Kit-2 (x2)
  • Miscellaneous

    On-Screen Display Languages
    • Arabic
    • English
    • French
    • German
    • Italian
    • Japanese
    • Polish
    • Russian
    • Spanish
    • Simplified Chinese
    • Turkish
    • Traditional Chinese
    Warranty
    3 years warranty
    Regulatory approvals
    • CE
    • FCC, Class A
    • RoHS
    • CB
    • ETL
    • BSMI
    • PSE
