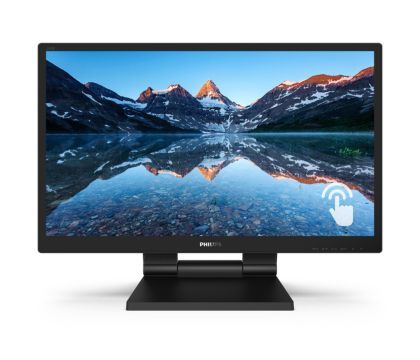

Monitor LCD monitor with SmoothTouch

242B9T/69

Brilliant interactive display with SmoothTouch

A sturdy, water and dust resistant touch screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts up productivity.

See all benefits

Monitor LCD monitor with SmoothTouch

Similar products

See all Touch monitors
Register

Subscribe to our newsletter

Brilliant interactive display with SmoothTouch

  • B Line
  • 24 (23.8" / 60.5 cm diag.)
  • 1920 x 1080 (Full HD)
SmoothTouch display for natural, fluid touch response

SmoothTouch display for natural, fluid touch response

This Philips display uses Projected capacitive 10 point touch technology for fluid response. You can fully utilize the new capabilities of touch based applications, and bring your older applications to life. Touch-type with 10 fingers, or play exciting interactive games with your friends. Collaborate with colleagues interactively at work or school environment and increase your productivity and efficiency.

Monitor front surface meets IP65 for water & dust resistance

Monitor front surface meets IP65 for water & dust resistance

For less than perfect environments, you need a monitor that's designed to hold up to the splashes of water and dust that happen in the everyday world. Ingress Protection (IP) ratings defined in international standard IEC/EN 60529, are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. This Philips display meets international the IP rating for water and dust resistance, it will hold up to water splashes and dust that happen in the everyday world.

16:9 Full HD display for crisp detailed images

16:9 Full HD display for crisp detailed images

Picture quality matters. Regular displays deliver quality, but you expect more. This display features enhanced Full HD 1920 x 1080 resolution. With Full HD for crisp detail paired with high brightness, incredible contrast and realistic colors expect a true to life picture.

SmartContrast for rich black details

SmartContrast for rich black details

SmartContrast is a Philips technology that analyzes the contents you are displaying, automatically adjusting colors and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.

LowBlue Mode for easy on-the-eyes productivity

LowBlue Mode for easy on-the-eyes productivity

Studies have shown that just as ultra-violet rays can cause eye damage, shortwave length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.

Less eye fatigue with Flicker-free technology

Less eye fatigue with Flicker-free technology

Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-free Technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.

HDMI ensures universal digital connectivity

HDMI ensures universal digital connectivity

An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input. A HDMI cable enables high-quality digital video and audio all transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).

DisplayPort connection for maximum visuals

DisplayPort connection for maximum visuals

DisplayPort is a digital link from PC to Monitor without any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15meter cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates - making DisplayPort the best choice for not only general office or home use, but also for the demanding gaming and movies, video editing and more. It also keeps interoperability in mind via use of various adapters.

EasyRead mode for a paper-like reading experience

EasyRead mode for a paper-like reading experience

SmartStand with adjustable angles, boosts productivity

Philips SmartStand allows for flexible adjustment of the screen. Its Z type structure with smooth tilt, height adjustment and folding capabilities enables you to use it in various ergonomic positions. You can set the stand in upright position for better touch control, or recline it backwards, making it easy for you to draw or annotate. It even allows you to put the screen almost flat on the table for some applications when required.

Technical Specifications

  • Connectivity

    Signal Input
    • VGA (Analog )
    • DVI-D (digital, HDCP)
    • DisplayPort 1.2
    • HDMI 1.4
    USB
    USB 3.1x2 (1 w/fast charging)*
    Sync Input
    • Separate Sync
    • Sync on Green
    Audio (In/Out)
    • PC audio-in
    • Headphone out
    HDCP
    HDCP: HDCP 1.4 (HDMI / DP / DVI)
  • Picture/Display

    Panel Size
    23.8 inch / 60.5 cm
    Aspect ratio
    16:9
    LCD panel type
    IPS technology
    Backlight type
    W-LED system
    Pixel pitch
    0.275 x 0.275 mm
    Optimum resolution
    1920 x 1080 @ 60Hz
    Brightness
    250  cd/m²
    Display colors
    16.7 M
    Color gamut (typical)
    NTSC 72% (CIE 1931)
    Contrast ratio (typical)
    1000:1
    SmartContrast
    50,000,000:1
    Response time (typical)
    5 ms (Gray to Gray)*
    Viewing angle
    • 178º (H) / 178º (V)
    • @ C/R > 10
    Picture enhancement
    SmartImage
    Effective viewing area
    527 (H) x 296.5 (V)
    Scanning Frequency
    30 - 85 kHz (H) / 48 - 75 Hz (V)
    sRGB
    Yes
    Flicker-free
    Yes
    Pixel Density
    93 PPI
    LowBlue Mode
    Yes
    EasyRead
    Yes
  • Touch

    Ingress protection
    IP65 - front only
    Operating system
    Windows 10 / 8.1 / 8 / 7; Android 7.1 / 7.0 / 6.0 / 5.0 / 4.4; certain Linux versions*
    Sealability
    Touchscreen sealed to bezel; Touchscreen sealed to LCD
    Touch active area
    527 mm (H) x 296.5 mm (V)
    Touch glass hardness
    7 H
    Touch interface
    USB
    Touch method
    Stylus, Finger, Glove*
    Touch points
    10 point
    Touch technology
    Projected capacitive
    Palm rejection area
    >= 30 x 30 mm
    Touch glass coating
    Glare
  • Convenience

    Built-in Speakers
    2 W x 2
    Plug & Play Compatibility
    • DDC/CI
    • sRGB
    • Windows 10 / 8.1 / 8 / 7
    User convenience
    • SmartImage
    • Input
    • Brightness
    • Menu
    • Power On/Off
    OSD Languages
    • Brazil Portuguese
    • Czech
    • Dutch
    • English
    • Finnish
    • French
    • German
    • Greek
    • Hungarian
    • Italian
    • Japanese
    • Korean
    • Polish
    • Portuguese
    • Russian
    • Simplified Chinese
    • Spanish
    • Swedish
    • Traditional Chinese
    • Turkish
    • Ukrainian
    Other convenience
    • Kensington lock
    • VESA mount (100x100mm)
    Control software
    SmartControl
  • Stand

    Height adjustment
    184 (Horizontal), 75 (Vertical)  mm
    Tilt
    -5 ~ 90  degree
    Folding angle
    0 ~ 70 degree
  • Power

    ECO mode
    11.5 W (typ.)
    Power supply
    • External
    • 100-240VAC, 50-60Hz
    Off mode
    < 0.3 W (typ.)
    On mode
    15.68 W (typ.) (EnergyStar test method)
    Standby mode
    < 0.5 W (typ.)
    Power LED indicator
    • Operation - White
    • Standby mode- White (blinking)
  • Dimensions

    Packaging in mm (WxHxD)
    620 x 433 x 168  mm
    Product without stand (mm)
    554 x 338 x 50  mm
    Product with stand(max height)
    554 x 413 x 227  mm
  • Weight

    Product with packaging (kg)
    11.06  kg
    Product with stand (kg)
    8.15  kg
    Product without stand (kg)
    4.86  kg
  • Operating conditions

    Altitude
    Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
    Temperature range (operation)
    0°C to 40°C  °C
    Relative humidity
    20%-80  %
    Temperature range (storage)
    -20°C to 60°C  °C
    MTBF (demonstrated)
    70,000 hrs (excluded backlight)
  • Sustainability

    Environmental and energy
    • EnergyStar 8.0
    • EPEAT*
    • TCO Certified
    • RoHS
    • WEEE
    Recyclable packaging material
    100  %
    Specific Substances
    • PVC / BFR free housing
    • Mercury free
  • Compliance and standards

    Regulatory Approvals
    • CB
    • CE Mark
    • FCC Class B
    • SEMKO
    • ICES-003
    • TUV/GS
    • TUV Ergo
    • CU-EAC
    • EAEU RoHS
    • PSB
    • cETLus
  • Cabinet

    Finish
    Texture
    Foot
    Black
    Front bezel
    Black
    Rear cover
    Black

Suggested products

Recently viewed products

Reviews

  • "IPS" word mark / trademark and related patents on technologies belong to their respective owners.
  • Glove material and thickness: Nitrile (0.15 mm), Cotton (0.31 mm), CPE (0.03 mm), PVC (0.12 mm)
  • Response time value equal to SmartResponse
  • Please refer to "SmoothTouch" in user manual for more details of operating systems support in touch function.
  • Fast charging complies with USB BC 1.2 standard
  • EPEAT rating is valid only where Philips registers the product. Please visit https://www.epeat.net/ for registration status in your country.
  • The monitor may look different from feature images.
