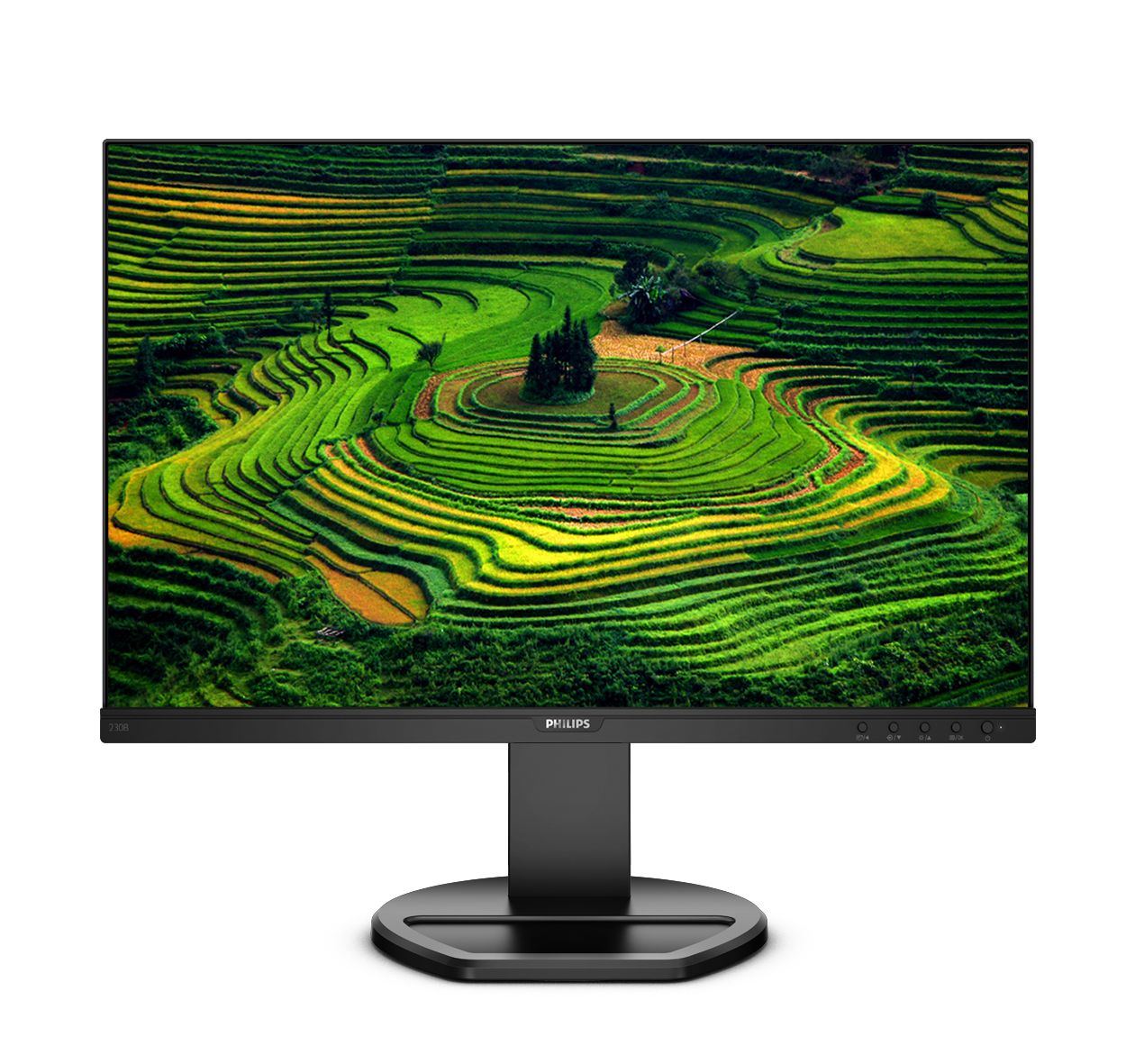

LCD monitor

230B8QJEB/69

Clear image, efficient performance

Get your best work done with the Philips 23" monitor. The 16:10 ratio display gives you extra vertical height for increased productivity. Features like height-adjustment, Flicker-free and LowBlue mode make work easy-on-the eyes.

See all benefits

LCD monitor

Similar products

See all Office monitors
Register

Subscribe to our newsletter

Clear image, efficient performance

for maximum productivity

  • B Line
  • 23 (22.5" / 57.2 cm diag.)
  • 1920 x 1200 (WUXGA)
IPS technology for full colors and wide viewing angles

IPS technology for full colors and wide viewing angles

IPS displays use an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle - even in 90 degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colors, making it ideal not only for Photos, movies and web browsing, but also for professional applications which demand color accuracy and consistent brightness at all times.

SmartImage presets for easy optimized image settings

SmartImage presets for easy optimized image settings

SmartImage is an exclusive leading edge Philips technology that analyzes the content displayed on your screen and gives you optimized display performance. This user friendly interface allows you to select various modes like Office, Photo, Movie, Game, Economy etc., to fit the application in use. Based on the selection, SmartImage dynamically optimizes the contrast, color saturation and sharpness of images and videos for ultimate display performance. The Economy mode option offers you major power savings. All in real time with the press of a single button!

LowBlue Mode for easy on-the-eyes productivity

LowBlue Mode for easy on-the-eyes productivity

Studies have shown that just as ultra-violet rays can cause eye damage, shortwave length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light.

Less eye fatigue with Flicker-free technology

Less eye fatigue with Flicker-free technology

Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-free Technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.

SmartErgoBase enables people-friendly ergonomic adjustments

SmartErgoBase enables people-friendly ergonomic adjustments

The SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management. The base can swivel, tilt and rotate to various angles to ensure maximum comfort. The height adjustable stand guarantees the optimal viewing level, reducing the physical strains of a long workday, while cable management reduces cable clutter and keeps the workspace neat and professional.

Narrow border display for a seamless appearance

Narrow border display for a seamless appearance

The new Philips displays feature ultra-narrow borders which allow for minimal distractions and maximum viewing size. Especially suited for multi-display or tiling setup like gaming, graphic design and professional applications, the ultra-narrow border display gives you the feeling of using one large display.

HDMI ensures universal digital connectivity

HDMI ensures universal digital connectivity

An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input. A HDMI cable enables high-quality digital video and audio all transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).

Built-in stereo speakers for multimedia

Built-in stereo speakers for multimedia

A pair of high quality stereo speakers built into a display device. It can be visible front firing, or invisible down firing, top firing, rear firing, etc depending on model and design.

EasyRead mode for a paper-like reading experience

EasyRead mode for a paper-like reading experience

100% recyclable packaging

Philips is committed to use sustainable, eco-friendly materials across its monitor range. All body plastic parts, metal chassis parts and packing materials use 100% recyclable materials. In selected models, we utilize >= 65% Post-Consumer Recycled plastics, ensuring reduction in waste. Strict adherence to RoHS standards ensure substantial reduction or elimination of toxic substances like Lead and Mercury. Our display housing is made up of PVC/BFR free material. For more information, please visit Philips @ http://www.asimpleswitch.com/global/ to learn more.

Technical Specifications

  • Connectivity

    Signal Input
    • VGA (Analog )
    • DVI-D (digital, HDCP)
    • HDMI 1.4
    • DisplayPort 1.2
    Sync Input
    • Separate Sync
    • Sync on Green
    Audio (In/Out)
    • PC audio-in
    • Headphone out
  • Picture/Display

    Panel Size
    22.5 inch / 57.2 cm
    Aspect ratio
    16:10
    LCD panel type
    IPS technology
    Backlight type
    W-LED system
    Pixel pitch
    0.25425 x 0.24765 mm
    Optimum resolution
    1920 x 1200 @ 60Hz
    Brightness
    250  cd/m²
    Display colors
    16.7M
    Color gamut (typical)
    NTSC 85%*, sRGB 101.8%*
    Contrast ratio (typical)
    1000:1
    SmartContrast
    50,000,000:1
    Response time (typical)
    5 ms (Gray to Gray)*
    Viewing angle
    • 178º (H) / 178º (V)
    • @ C/R > 10
    Picture enhancement
    SmartImage
    Effective viewing area
    488.16 (H) x 297.18 (V)
    Scanning Frequency
    30 - 96 kHz (H) / 48 - 76 Hz (V)
    sRGB
    Yes
    Flicker-free
    Yes
    Pixel Density
    101 PPI
    LowBlue Mode
    Yes
    Display Screen Coating
    Anti-Glare, 3H, Haze 25%
    EasyRead
    Yes
    Adaptive sync
    Yes
  • Convenience

    Built-in Speakers
    2 W x 2
    Plug & Play Compatibility
    • DDC/CI
    • Mac OS X
    • sRGB
    • Windows 10 / 8.1 / 8 / 7
    User convenience
    • SmartImage
    • Input
    • Brightness
    • Menu
    • Power On/Off
    OSD Languages
    • Brazil Portuguese
    • Czech
    • Dutch
    • English
    • Finnish
    • French
    • German
    • Greek
    • Hungarian
    • Italian
    • Japanese
    • Korean
    • Polish
    • Portuguese
    • Russian
    • Simplified Chinese
    • Spanish
    • Swedish
    • Traditional Chinese
    • Turkish
    • Ukrainian
    Other convenience
    • Kensington lock
    • VESA mount (100x100mm)
    Control software
    SmartControl
  • Stand

    Height adjustment
    130  mm
    Pivot
    +/- 90 degree
    Swivel
    -175 ~ 175  degree
    Tilt
    -5 ~ 30  degree
  • Power

    ECO mode
    8.5 W (typ.)
    Power supply
    • Built-in
    • 100-240VAC, 50-60Hz
    Off mode
    Zero watts with Zero switch
    On mode
    13.6 W (typ.) (EnergyStar 8.0 test method)
    Standby mode
    < 0.3 W (typ.)
    Power LED indicator
    • Operation - White
    • Standby mode- White (blinking)
  • Dimensions

    Packaging in mm (WxHxD)
    565 x 519 x 161  mm
    Product without stand (mm)
    499 x 323 x 56  mm
    Product with stand(max height)
    499 x 512 x 216  mm
  • Weight

    Product with packaging (kg)
    6.25  kg
    Product with stand (kg)
    4.30  kg
    Product without stand (kg)
    2.70  kg
  • Operating conditions

    Altitude
    Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
    Temperature range (operation)
    0°C to 40°C  °C
    MTBF
    70,000 hrs (excluded backlight)  hour(s)
    Relative humidity
    20%-80  %
    Temperature range (storage)
    -20°C to 60°C  °C
  • Sustainability

    Environmental and energy
    • EnergyStar 8.0
    • EPEAT*
    • TCO Certified Edge
    • WEEE
    • RoHS
    Recyclable packaging material
    100  %
    Specific Substances
    • PVC / BFR free housing
    • Mercury free
    Recycled material
    85%
  • Compliance and standards

    Regulatory Approvals
    • CE Mark
    • FCC Class B
    • UKRAINIAN
    • ICES-003
    • TUV Ergo
    • TUV/GS
    • CU-EAC
    • CB
    • PSB
  • Cabinet

    Finish
    Texture
    Foot
    Black/Black
    Front bezel
    Black/Black
    Rear cover
    Black/Black

Suggested products

Recently viewed products

Reviews

  • "IPS" word mark / trademark and related patents on technologies belong to their respective owners.
  • Response time value equal to SmartResponse
  • NTSC Area based on CIE1976
  • sRGB Area based on CIE1931
  • EPEAT rating is valid only where Philips registers the product. Please visit https://www.epeat.net/ for registration status in your country.
  • The monitor may look different from feature images.
